首頁 - SKF角接觸球軸承, 精密, S .. ACD/HC, sealed, contact angle 25°, hybrid - SKF S71911ACD/HCP4A軸承_進口軸承
S71911ACD/HCP4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢S71911ACD/HCP4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對55mm×80mm×13mm S71911ACD/HCP4A軸承有什么疑問，請聯系我們獲取更多信息。
RS717940AZ軸承
RS717940AZ軸承
SKFS71911ACD/HCP4A軸承_進口軸承
| 角接觸球軸承, 精密, S .. ACD/HC, sealed, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 55 | 80 | 13 | 18,2 | 13,7 | 0,585 | 17000 | - | 0,15 | S71911 ACD/HCP4A | - | |
推薦產品
我公司特價供應以下型號產品： HM518445軸承 7010A軸承 23184RK+H3184軸承 15101/15245軸承 NNU4940軸承 7320DB軸承 23928AX軸承 54406U軸承 7213DB軸承 7308DT軸承
我公司特價供應以下型號產品： HM518445軸承 7010A軸承 23184RK+H3184軸承 15101/15245軸承 NNU4940軸承 7320DB軸承 23928AX軸承 54406U軸承 7213DB軸承 7308DT軸承

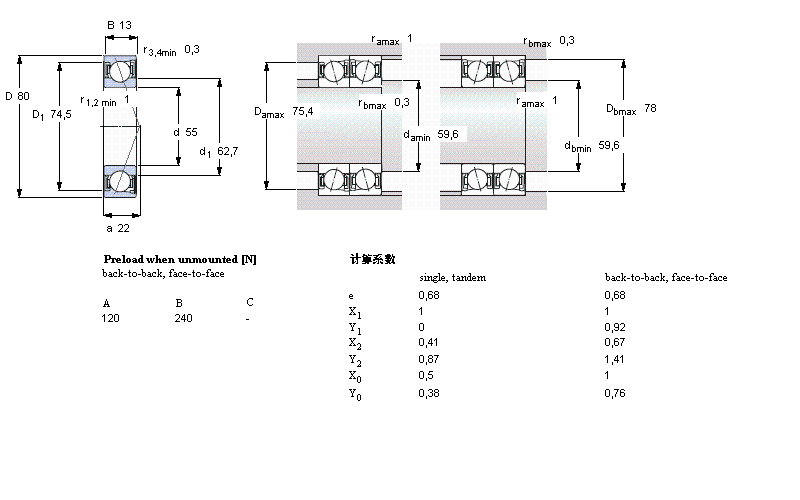

SKF軸承S71911ACD/HCP4A樣本圖
