S7019CD/P4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢S7019CD/P4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對95mm×145mm×24mm S7019CD/P4A軸承有什么疑問，請聯系我們獲取更多信息。
CRBS708軸承 CRBS708VUU軸承 CRBS708V軸承 CRBS708AUU軸承
CRBS708軸承 CRBS708VUU軸承 CRBS708V軸承 CRBS708AUU軸承
SKFS7019CD/P4A軸承_進口軸承
| 角接觸球軸承, 精密, S .. CD, sealed, contact angle 15° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態(tài) | 靜態(tài) | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 95 | 145 | 24 | 81,9 | 80 | 3,1 | 8500 | - | 1,2 | S7019 CD/P4A | - | |
推薦產品
我公司特價供應以下型號產品： 170RV2503軸承 7328BDB軸承 E-CRO-3617軸承 N213軸承 7013DF軸承 29484軸承 85TMP11軸承 6306DD軸承 MF-2212軸承 T7FC045軸承 7215BDF軸承 1217K軸承
我公司特價供應以下型號產品： 170RV2503軸承 7328BDB軸承 E-CRO-3617軸承 N213軸承 7013DF軸承 29484軸承 85TMP11軸承 6306DD軸承 MF-2212軸承 T7FC045軸承 7215BDF軸承 1217K軸承

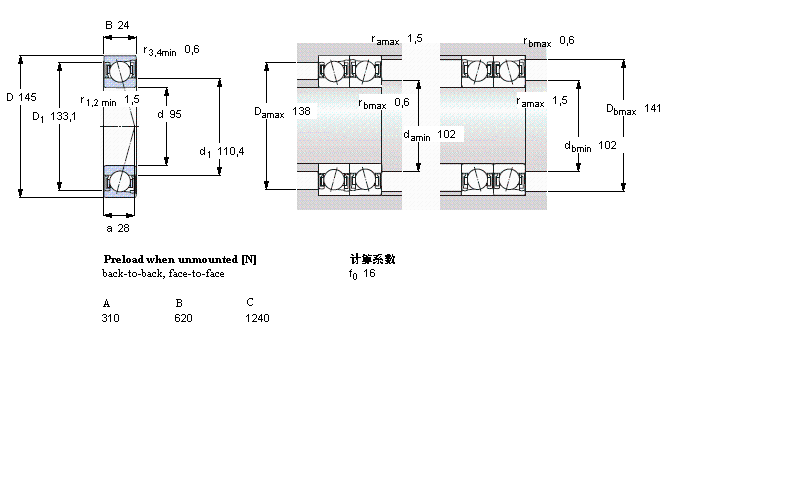

SKF軸承S7019CD/P4A樣本圖
