FBSA210/QBC軸承，我司有部分庫存，您可致電銷售人員免費咨詢FBSA210/QBC軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對50mm×124mm×106mm FBSA210/QBC軸承有什么疑問，請聯系我們獲取更多信息。
SKFFBSA210/QBC軸承_進口軸承
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 50 | 124 | 106 | 75,795 | 292 | 10,8 | 3000 | 1500 | 9,1 | FBSA 210/ QBC | BSQU 250 TDT | |
推薦產品
我公司特價供應以下型號產品： 23188RK+AHX31..軸承 IRT3020軸承 NUP411軸承 NJ1056軸承 6310ZZ軸承 CFE8R軸承 NF224軸承 7814C軸承 7310BDT軸承 41286軸承 5214ANR軸承 6830N軸承
我公司特價供應以下型號產品： 23188RK+AHX31..軸承 IRT3020軸承 NUP411軸承 NJ1056軸承 6310ZZ軸承 CFE8R軸承 NF224軸承 7814C軸承 7310BDT軸承 41286軸承 5214ANR軸承 6830N軸承

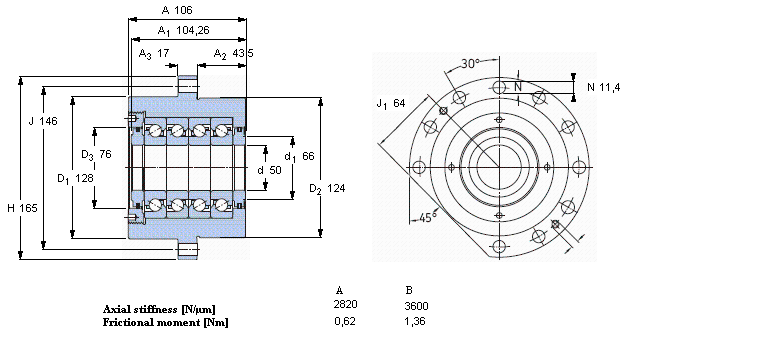

SKF軸承FBSA210/QBC樣本圖
