首頁 - SKF角接觸推力球軸承 for screw drives, cartridge units with flanged housing - SKF FBSA206A/QFC軸承_進口軸承
FBSA206A/QFC軸承，我司有部分庫存，您可致電銷售人員免費咨詢FBSA206A/QFC軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對30mm×88mm×86mm FBSA206A/QFC軸承有什么疑問，請聯系我們獲取更多信息。
SKFFBSA206A/QFC軸承_進口軸承
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 30 | 88 | 86 | 46,455 | 142 | 5,3 | 4000 | 2000 | 3,7 | FBSA 206 A/ QFC | BSQU 230/1 TFT | |
推薦產品
我公司特價供應以下型號產品： NP319軸承 BRI122416U軸承 52412軸承 25580/25523軸承 NU2211軸承 NU2314軸承 N2316軸承 4T-655/653軸承 24052CAE4軸承 AZ15020542軸承 NA6906U軸承 NAF8511530軸承 2301軸承
我公司特價供應以下型號產品： NP319軸承 BRI122416U軸承 52412軸承 25580/25523軸承 NU2211軸承 NU2314軸承 N2316軸承 4T-655/653軸承 24052CAE4軸承 AZ15020542軸承 NA6906U軸承 NAF8511530軸承 2301軸承

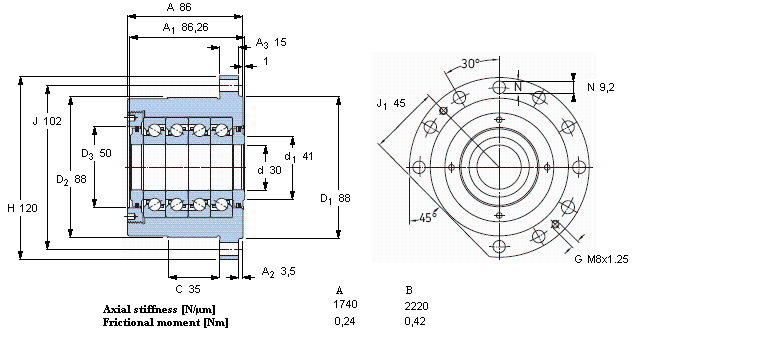

SKF軸承FBSA206A/QFC樣本圖
