C7022DB/P7軸承，我司有部分庫存，您可致電銷售人員免費咨詢C7022DB/P7軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對110mm×170mm×28mm C7022DB/P7軸承有什么疑問，請聯系我們獲取更多信息。
CRBC700150軸承 CRBC70070軸承 CRBC70045軸承 CRBC7013UU軸承 CRBC7013軸承
CRBC700150軸承 CRBC70070軸承 CRBC70045軸承 CRBC7013UU軸承 CRBC7013軸承
SKFC7022DB/P7軸承_進口軸承
| 角接觸球軸承, 精密, C .. DB, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 110 | 170 | 28 | 46,8 | 60 | 2,12 | 10000 | 16000 | 1,9 | C7022 DB/P7 | - | |
推薦產品
我公司特價供應以下型號產品： 562930軸承 42687軸承 NU1056軸承 NN3019K軸承 E-HM261049D/H..軸承 6315NR軸承 7300軸承 LRTZ202520軸承 NUP316軸承
我公司特價供應以下型號產品： 562930軸承 42687軸承 NU1056軸承 NN3019K軸承 E-HM261049D/H..軸承 6315NR軸承 7300軸承 LRTZ202520軸承 NUP316軸承

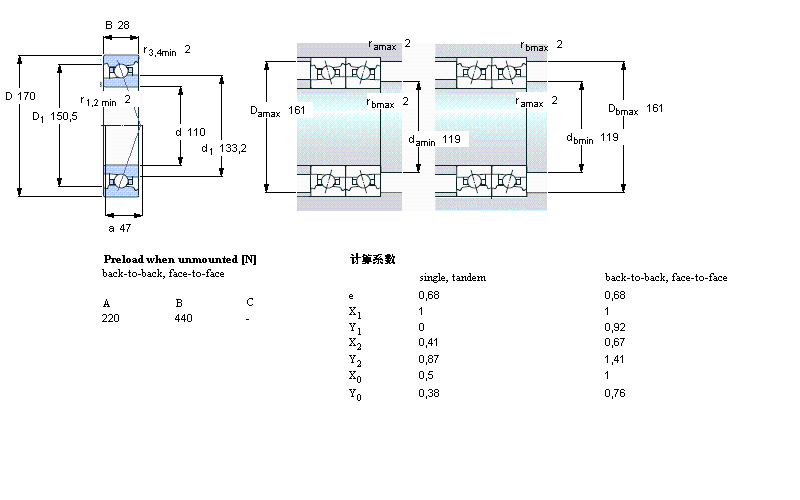

SKF軸承C7022DB/P7樣本圖
