首頁 - SKF角接觸推力球軸承 for screw drives, double direction, for bolt mounting - SKF BEAM050115-2Z軸承_進口軸承
BEAM050115-2Z軸承，我司有部分庫存，您可致電銷售人員免費咨詢BEAM050115-2Z軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對50mm×115mm×34mm BEAM050115-2Z軸承有什么疑問，請聯系我們獲取更多信息。
SKFBEAM050115-2Z軸承_進口軸承
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 50 | 115 | 34 | 46,8 | 127 | 4,65 | 3600 | 1,85 | BEAM 050115-2Z | BEAM 50/115/Z 7P60 | |
推薦產品
我公司特價供應以下型號產品： 22356RHAK+H23..軸承 7015DT軸承 3479軸承 N1040軸承 FWF-505825軸承 CRH10-1VUU軸承 NJ2205軸承 22207C軸承 755/752軸承
我公司特價供應以下型號產品： 22356RHAK+H23..軸承 7015DT軸承 3479軸承 N1040軸承 FWF-505825軸承 CRH10-1VUU軸承 NJ2205軸承 22207C軸承 755/752軸承

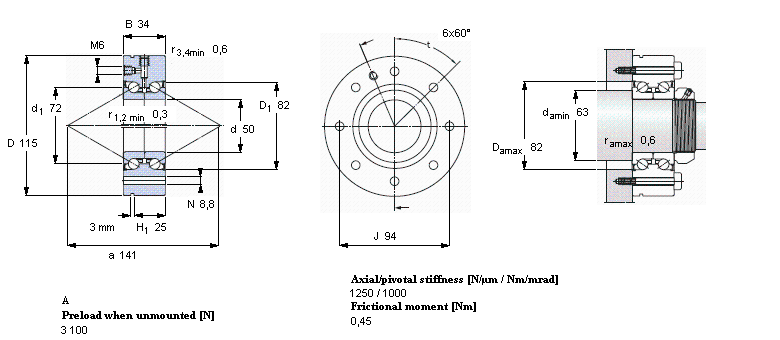

SKF軸承BEAM050115-2Z樣本圖
