BEAM030080-2Z軸承，我司有部分庫存，您可致電銷售人員免費咨詢BEAM030080-2Z軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對30mm×80mm×28mm BEAM030080-2Z軸承有什么疑問，請聯系我們獲取更多信息。
SKFBEAM030080-2Z軸承_進口軸承
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 30 | 80 | 28 | 29,1 | 64 | 2,36 | 4500 | 0,78 | BEAM 030080-2Z | BEAM 30/80/Z 7P60 | |
推薦產品
我公司特價供應以下型號產品： N248軸承 6204N軸承 7000CDT軸承 TLA4012Z軸承 E32040J軸承 NJ230軸承 BL216Z軸承 24068BK30+AH2..軸承 23038RK+AH303..軸承 7040ADF軸承 TLAM910軸承 23040EW33軸承
我公司特價供應以下型號產品： N248軸承 6204N軸承 7000CDT軸承 TLA4012Z軸承 E32040J軸承 NJ230軸承 BL216Z軸承 24068BK30+AH2..軸承 23038RK+AH303..軸承 7040ADF軸承 TLAM910軸承 23040EW33軸承

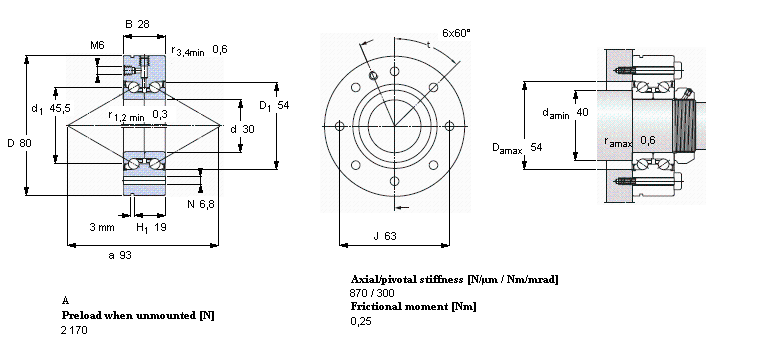

SKF軸承BEAM030080-2Z樣本圖
