首頁 - SKF角接觸推力球軸承 for screw drives, double direction, for bolt mounting - SKF BEAM020068-2RS/PE軸承_進口軸承
BEAM020068-2RS/PE軸承，我司有部分庫存，您可致電銷售人員免費咨詢BEAM020068-2RS/PE軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對20mm×68mm×28mm BEAM020068-2RS/PE軸承有什么疑問，請聯系我們獲取更多信息。
SKFBEAM020068-2RS/PE軸承_進口軸承
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 20 | 68 | 28 | 26 | 46,5 | 1,73 | 3400 | 0,61 | BEAM 020068-2RS/PE | BEAM 20/68/C SQP60 | |
推薦產品
我公司特價供應以下型號產品： FJH-1212軸承 462/710軸承 HJ414軸承 432322軸承 51200軸承 NUP322E軸承 300TMP11軸承 HR95KBE42+L軸承
我公司特價供應以下型號產品： FJH-1212軸承 462/710軸承 HJ414軸承 432322軸承 51200軸承 NUP322E軸承 300TMP11軸承 HR95KBE42+L軸承

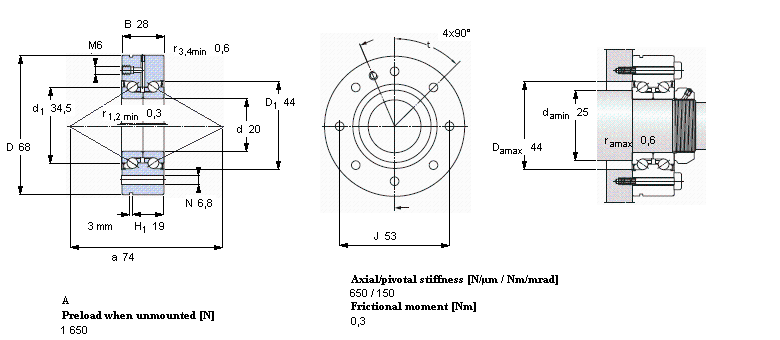

SKF軸承BEAM020068-2RS/PE樣本圖
