71914ACE/P4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢71914ACE/P4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對70mm×100mm×16mm 71914ACE/P4A軸承有什么疑問，請聯系我們獲取更多信息。
4T-07100S/07196軸承 4T-07093/07196軸承 4T-JM719149/JM719113軸承 7196軸承 JM719113軸承 7196軸承 4T-07087/07196軸承 07097/07196軸承 JM719149軸承 4T-07098/07196軸承
4T-07100S/07196軸承 4T-07093/07196軸承 4T-JM719149/JM719113軸承 7196軸承 JM719113軸承 7196軸承 4T-07087/07196軸承 07097/07196軸承 JM719149軸承 4T-07098/07196軸承
SKF71914ACE/P4A軸承_進口軸承
| 角接觸球軸承, 精密, ACE, contact angle 25° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 70 | 100 | 16 | 20,3 | 14,3 | 0,6 | 16000 | 26000 | 0,32 | 71914 ACE/P4A | - | |
推薦產品
我公司特價供應以下型號產品： TAM2510軸承 7000ADF軸承 22218AEXK軸承 JH415610軸承 63/32NKE軸承 7304C軸承 N1016軸承 4T-HM89444/HM..軸承 N310軸承 TA243220Z軸承 7002ADT軸承 NJ232EM軸承 53326X軸承
我公司特價供應以下型號產品： TAM2510軸承 7000ADF軸承 22218AEXK軸承 JH415610軸承 63/32NKE軸承 7304C軸承 N1016軸承 4T-HM89444/HM..軸承 N310軸承 TA243220Z軸承 7002ADT軸承 NJ232EM軸承 53326X軸承

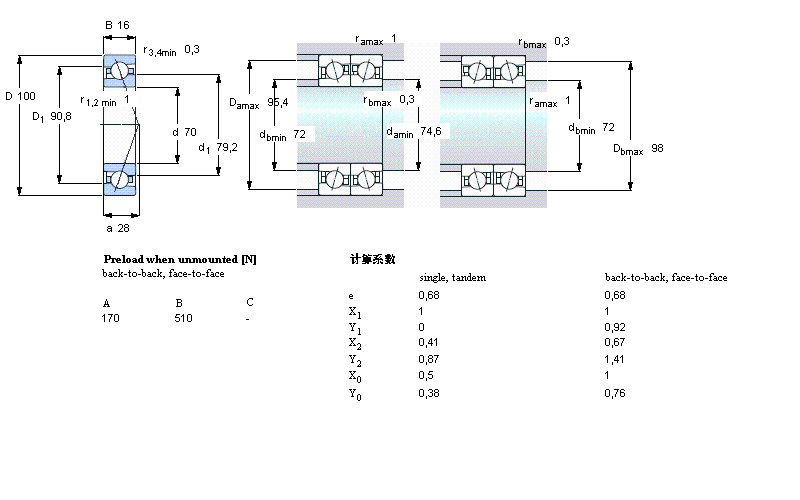

SKF軸承71914ACE/P4A樣本圖
