71911DB/P7軸承，我司有部分庫存，您可致電銷售人員免費咨詢71911DB/P7軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對55mm×80mm×13mm 71911DB/P7軸承有什么疑問，請聯系我們獲取更多信息。
7196軸承 4T-07096/07196軸承 7196軸承 JM719149軸承 JM719113軸承 07097/07196軸承 4T-07087/07196軸承 07087/07196軸承 4T-JM719149/JM719113軸承 4T-07100/07196軸承
7196軸承 4T-07096/07196軸承 7196軸承 JM719149軸承 JM719113軸承 07097/07196軸承 4T-07087/07196軸承 07087/07196軸承 4T-JM719149/JM719113軸承 4T-07100/07196軸承
SKF71911DB/P7軸承_進口軸承
| 角接觸球軸承, 精密, DB, contact angle 25° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 55 | 80 | 13 | 12,7 | 13,4 | 0,57 | 18000 | 30000 | 0,18 | 71911 DB/P7 | - | |
推薦產品
我公司特價供應以下型號產品： NJ2310軸承 7330ADB軸承 NUP238E軸承 HR32209CJ軸承 7216BDF軸承 7206DF軸承 LRTZ354230軸承 7308ADF軸承 53418軸承 32310U軸承 32238U軸承 HR31318J軸承 395/394A軸承 MF85軸承
我公司特價供應以下型號產品： NJ2310軸承 7330ADB軸承 NUP238E軸承 HR32209CJ軸承 7216BDF軸承 7206DF軸承 LRTZ354230軸承 7308ADF軸承 53418軸承 32310U軸承 32238U軸承 HR31318J軸承 395/394A軸承 MF85軸承

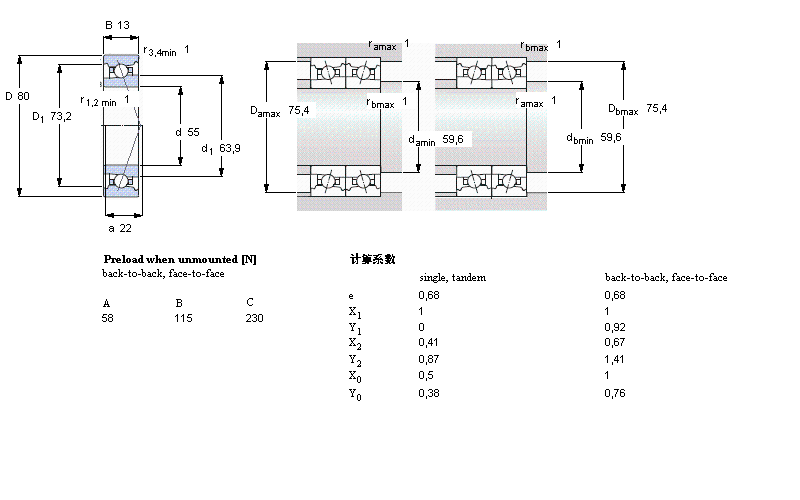

SKF軸承71911DB/P7樣本圖
