71906ACE/HCP4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢71906ACE/HCP4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對30mm×47mm×9mm 71906ACE/HCP4A軸承有什么疑問，請聯系我們獲取更多信息。
4T-07096/07196軸承 4T-07079/07196軸承 4T-07098/07196軸承 07097/07196軸承 7196軸承 JM719149/13軸承 47T271916軸承 JM719149軸承 07087/07196軸承 4T-07087/07196軸承
4T-07096/07196軸承 4T-07079/07196軸承 4T-07098/07196軸承 07097/07196軸承 7196軸承 JM719149/13軸承 47T271916軸承 JM719149軸承 07087/07196軸承 4T-07087/07196軸承
SKF71906ACE/HCP4A軸承_進口軸承
| 角接觸球軸承, 精密, ACE/HC, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 30 | 47 | 9 | 5,27 | 2,9 | 0,125 | 40000 | 63000 | 0,043 | 71906 ACE/HCP4A | - | |
推薦產品
我公司特價供應以下型號產品： 323044E1軸承 JM720210軸承 HR85KBE42+L軸承 CFE8V軸承 21305E軸承 5S-BNT001軸承 23936CAE4軸承 HR32216J軸承 RNA6909UU軸承 LRBZ606832軸承 230/600CAE4軸承 GBRI568032軸承 54310軸承 52637軸承 HR30326J軸承
我公司特價供應以下型號產品： 323044E1軸承 JM720210軸承 HR85KBE42+L軸承 CFE8V軸承 21305E軸承 5S-BNT001軸承 23936CAE4軸承 HR32216J軸承 RNA6909UU軸承 LRBZ606832軸承 230/600CAE4軸承 GBRI568032軸承 54310軸承 52637軸承 HR30326J軸承

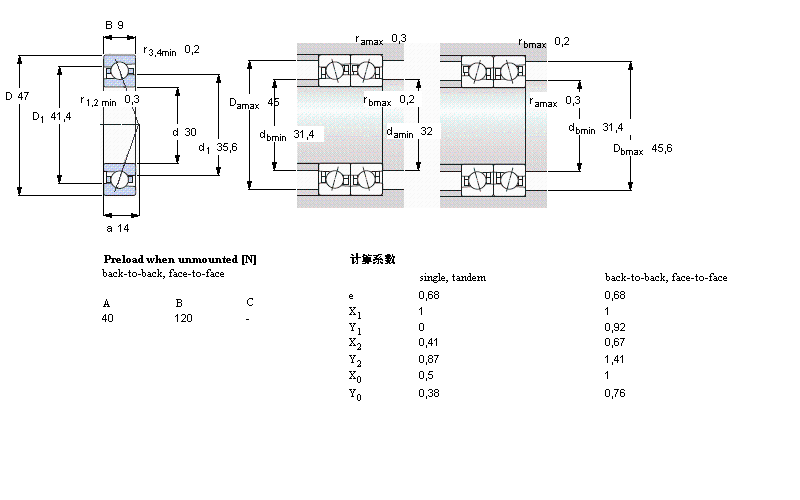

SKF軸承71906ACE/HCP4A樣本圖
