71904ACD/P4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢71904ACD/P4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對20mm×37mm×9mm 71904ACD/P4A軸承有什么疑問，請聯系我們獲取更多信息。
4T-07100S/07196軸承 07087/07196軸承 7196軸承 SB223719軸承 4T-07100/07196軸承 7196軸承 4T-07096/07196軸承 47T271916軸承 7196軸承 4T-07087/07196軸承
4T-07100S/07196軸承 07087/07196軸承 7196軸承 SB223719軸承 4T-07100/07196軸承 7196軸承 4T-07096/07196軸承 47T271916軸承 7196軸承 4T-07087/07196軸承
SKF71904ACD/P4A軸承_進口軸承
| 角接觸球軸承, 精密, ACD, contact angle 25° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 20 | 37 | 9 | 5,72 | 3,05 | 0,129 | 38000 | 56000 | 0,035 | 71904 ACD/P4A | - | |
推薦產品
我公司特價供應以下型號產品： R2-5軸承 23060BK+AH306..軸承 CFS5軸承 22122RS軸承 2212軸承 H-2580/H-2523軸承 86FC60450軸承 562009M軸承 RNAFW253732軸承 M38549軸承
我公司特價供應以下型號產品： R2-5軸承 23060BK+AH306..軸承 CFS5軸承 22122RS軸承 2212軸承 H-2580/H-2523軸承 86FC60450軸承 562009M軸承 RNAFW253732軸承 M38549軸承

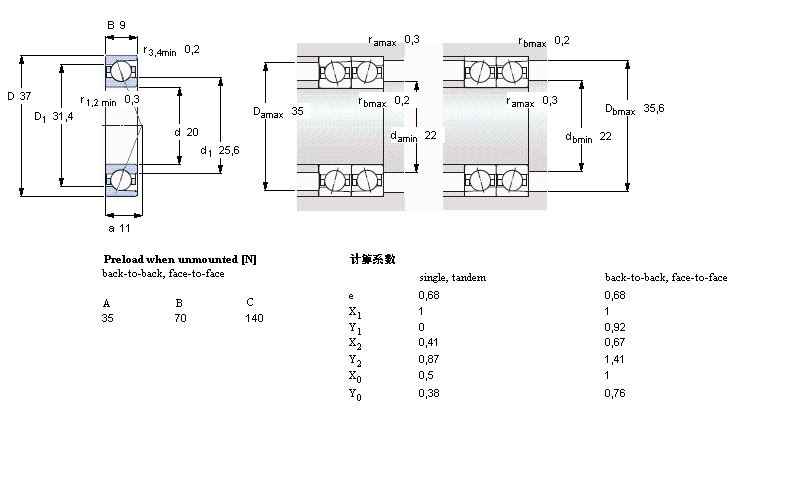

SKF軸承71904ACD/P4A樣本圖
