71903ACD/HCP4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢71903ACD/HCP4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對17mm×30mm×7mm 71903ACD/HCP4A軸承有什么疑問，請聯系我們獲取更多信息。
07100/07196軸承 4T-07100S/07196軸承 JM719113軸承 4T-07093/07196軸承 47T271916軸承 7196軸承 4T-07087/07196軸承 4T-07097/07196軸承 JM719149/13軸承 7196軸承
07100/07196軸承 4T-07100S/07196軸承 JM719113軸承 4T-07093/07196軸承 47T271916軸承 7196軸承 4T-07087/07196軸承 4T-07097/07196軸承 JM719149/13軸承 7196軸承
SKF71903ACD/HCP4A軸承_進口軸承
| 角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 17 | 30 | 7 | 3,97 | 2 | 0,085 | 53000 | 80000 | 0,015 | 71903 ACD/HCP4A | - | |
推薦產品
我公司特價供應以下型號產品： EC6005ZZ軸承 160KBV039軸承 LRT657225軸承 FL688A軸承 R6ZZ軸承 51213軸承 62/32N軸承 BA1414Z軸承 230/560CAE4軸承 NAFW254026軸承 NJ2307ET軸承 54222軸承
我公司特價供應以下型號產品： EC6005ZZ軸承 160KBV039軸承 LRT657225軸承 FL688A軸承 R6ZZ軸承 51213軸承 62/32N軸承 BA1414Z軸承 230/560CAE4軸承 NAFW254026軸承 NJ2307ET軸承 54222軸承

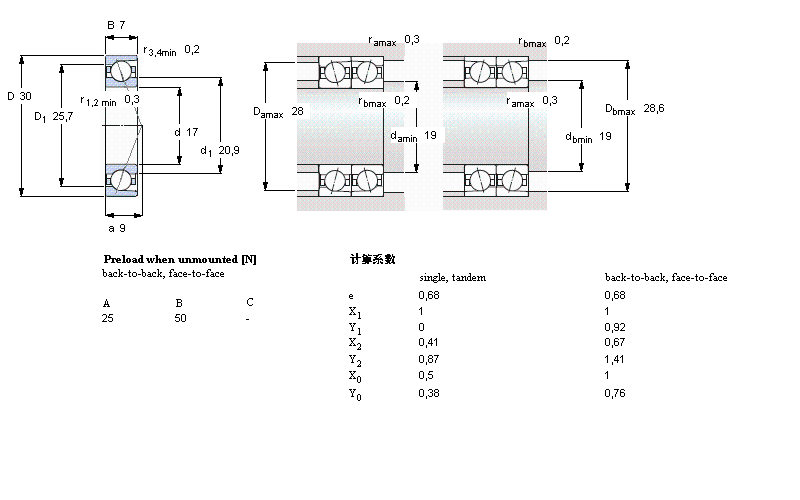

SKF軸承71903ACD/HCP4A樣本圖
