71814CD/HCP4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢71814CD/HCP4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對70mm×90mm×10mm 71814CD/HCP4A軸承有什么疑問，請聯系我們獲取更多信息。
36FC27180軸承 JM718110軸承 JM718149/10軸承 4T-JM718149/JM718110軸承 47T271816軸承 JM718149軸承
36FC27180軸承 JM718110軸承 JM718149/10軸承 4T-JM718149/JM718110軸承 47T271816軸承 JM718149軸承
SKF71814CD/HCP4A軸承_進口軸承
| 角接觸球軸承, 精密, CD, contact angle 15°, hybrid, super-precision | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 70 | 90 | 10 | 13,8 | 16 | 0,67 | 17000 | 26000 | 0,121 | 71814 CD/HCP4A | SEA70 /NS 7CE1 | |
推薦產品
我公司特價供應以下型號產品： 7238BDT軸承 CF10VRM軸承 R22/17軸承 6304ZZE軸承 23230AXW33K軸承 RLM1620軸承 29415E軸承 TAF739025軸承 RNA4910UU軸承 54409軸承 7916C軸承 BAM2220軸承
我公司特價供應以下型號產品： 7238BDT軸承 CF10VRM軸承 R22/17軸承 6304ZZE軸承 23230AXW33K軸承 RLM1620軸承 29415E軸承 TAF739025軸承 RNA4910UU軸承 54409軸承 7916C軸承 BAM2220軸承

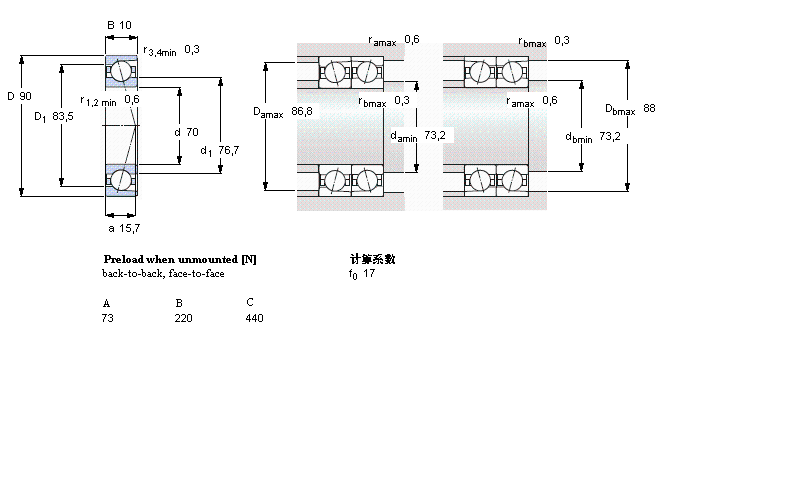

SKF軸承71814CD/HCP4A樣本圖
