首頁 - SKF角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision - SKF 71808ACD/HCP4軸承_進口軸承
71808ACD/HCP4軸承，我司有部分庫存，您可致電銷售人員免費咨詢71808ACD/HCP4軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對40mm×52mm×7mm 71808ACD/HCP4軸承有什么疑問，請聯系我們獲取更多信息。
4T-JM718149/JM718110軸承 36FC27180軸承 JM718110軸承 JM718149軸承 47T271816軸承 JM718149/10軸承
4T-JM718149/JM718110軸承 36FC27180軸承 JM718110軸承 JM718149軸承 47T271816軸承 JM718149/10軸承
SKF71808ACD/HCP4軸承_進口軸承
| 角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 40 | 52 | 7 | 4,49 | 4,55 | 0,196 | 28000 | 43000 | 0,029 | 71808 ACD/HCP4 | SEA40 /NS 7CE3 | |
推薦產品
我公司特價供應以下型號產品： 7222CDF軸承 N332軸承 IRT1220-1軸承 62/22軸承 NUP312軸承 NJ312軸承 23126EX1軸承 FJ-2816軸承 23232BK+AH323..軸承 NUP2322E軸承 CF3FWBR軸承
我公司特價供應以下型號產品： 7222CDF軸承 N332軸承 IRT1220-1軸承 62/22軸承 NUP312軸承 NJ312軸承 23126EX1軸承 FJ-2816軸承 23232BK+AH323..軸承 NUP2322E軸承 CF3FWBR軸承

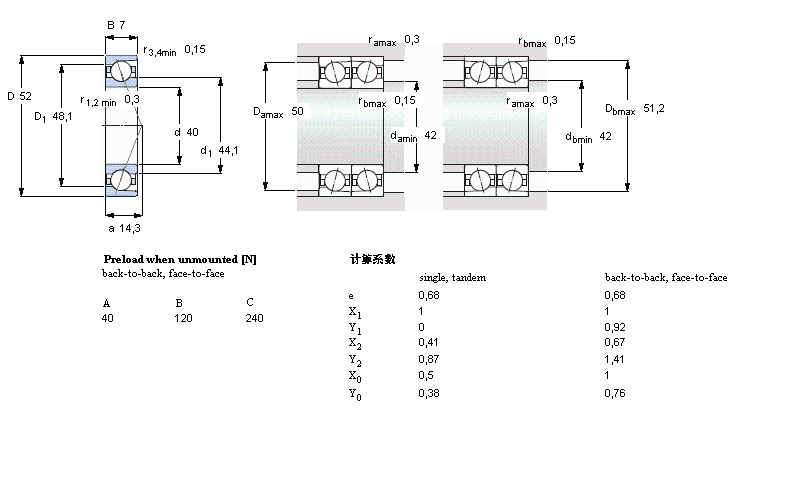

SKF軸承71808ACD/HCP4樣本圖
